5499922-3
Manufacturer:
TE Connectivity
Mfr.Part #:
5499922-3
Datasheet:
Description:

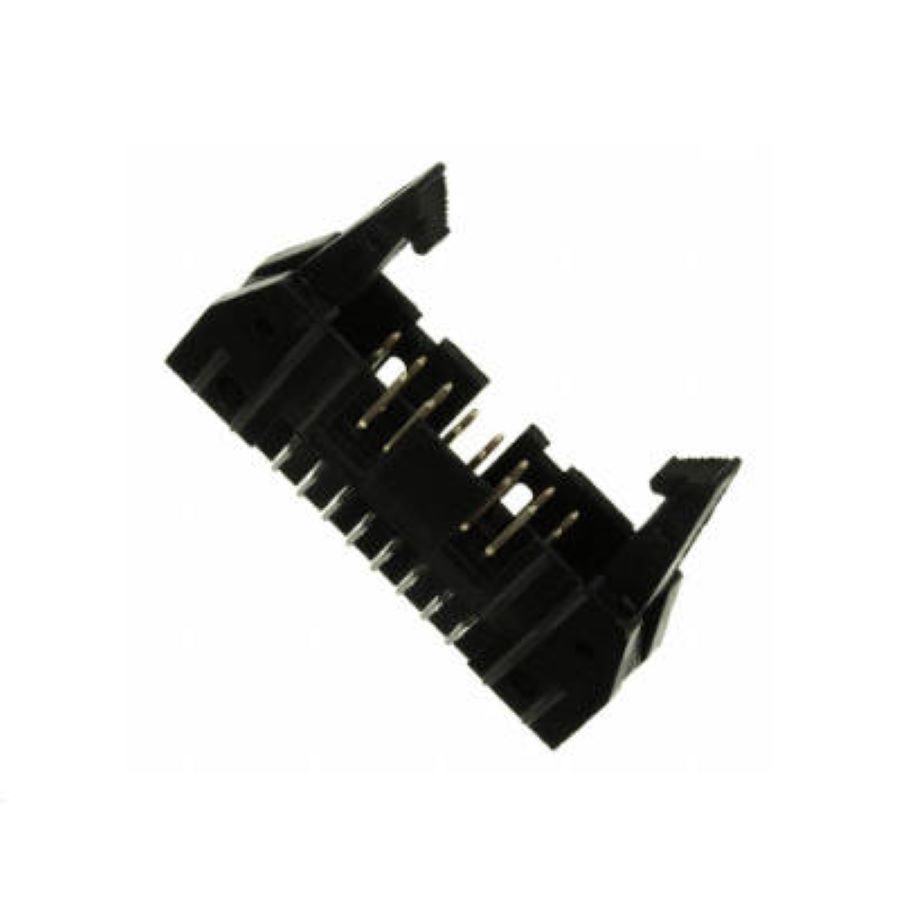

Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 39.624 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Height | 13.94 mm |
| Packaging | Bulk |
| Voltage Rating | 0.25 V (250 mV) |
| Depth | 8.53 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin, Gold |
| Lead Length | 2.79 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 16 |
| ELV | Compliant |
| Number of Poles | 16 |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Latch |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 1 A |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| Mating Post Length | 6.1 mm |
| Contact Shape | Square |
| Shrouded End Dimension | 3.81 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Mating Connector Lock | With |
| Termination Post Length | 2.79 mm |
| PCB Mount Retention | Without |
Stock: 493
Distributors
pcbx
pcbxUnit Price$1.74577
Ext.Price$1.74577
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.74577 | $1.74577 |
| 10 | $1.71499 | $17.14990 |
| 25 | $1.67053 | $41.76325 |
| 50 | $1.42687 | $71.34350 |
